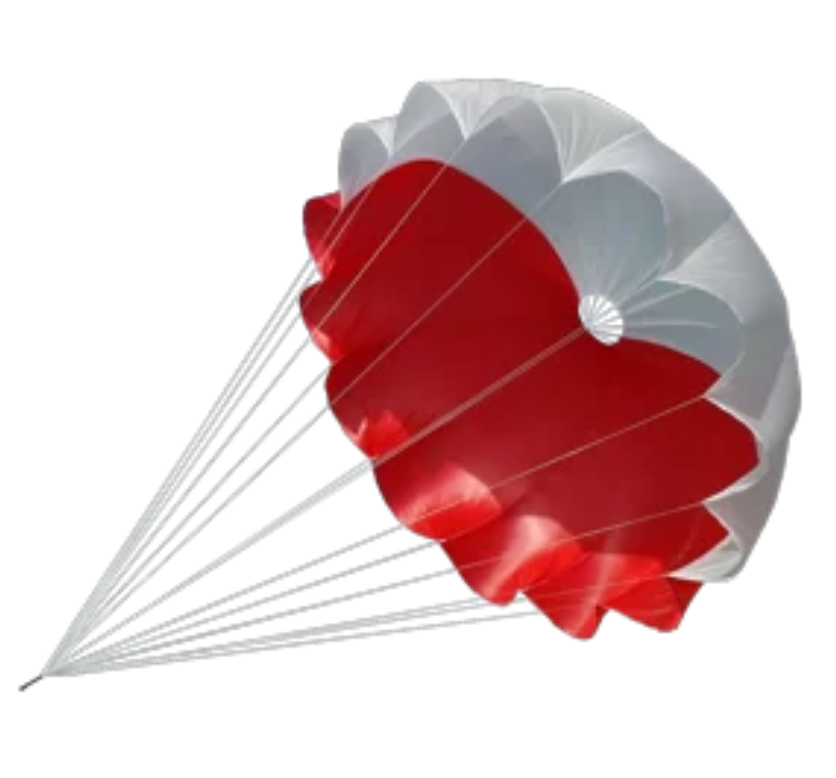

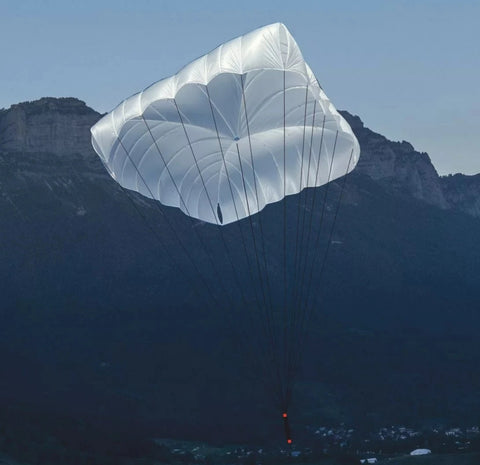

Dudek's Globe Light parachute is designed for solo flying and tandem paraglider pilots. In case of serious paraglider malfunction rendering further flight impossible, our system reduces the sink rate and allows for a safe landing.
Its weight ranges have been adjusted so that maximum sink speed never exceeds 5,5 m/s - something of special importance to the pilot involed
As standard, the system comes packed in its inner bag, ready to be inserted into a harness-integrated container. Your harness should be equipped with its own release handle and V- or H-shaped risers leading from the shoulder straps to the container. If any of these are missing, contact your harness dealer and/or manufacturer since the length and shape of those parts can vary with the harness model and must exactly fit the one you are using.
As an option, you can get at Dudek Paragliders the externally mounted container, its release handle and V-risers. It can be attached to the front or side of the harness, depending on your preferences and harness characteristics.
Rescue parachute is activated manually by releasing the handle, pulling the bag out of the container and throwing it out along the direction of the airflow (together with the handle).
Technical Data
Globe & Quad Light | 90 | 110 | 135 | Quad 160 | Bi |
EN Certification | EP 024.2010_DP | EP 025.2010_DP | EP 025.2010_DP | EN 12491: 2015 | EP 031.2010_DP |
LTF Certification | RG 024.2010_DP | RG 025.2010_DP | RG 026.2010_DP | NfL 2-565-20 | RG 031.2010_DP |
Declaration of Design and Performance (DDP) | 02.002.002 | 02.002.002 | 02.002.002 | 02.002.002 | |
Canopy system | single | single | single | single | single |
Number of panels/lines | 13 | 14 | 16 | 20 | |
Surface flat [m2] | 22.5 | 26.3 | 32.5 | 40 | 55.9 |
Maximum opening speed [km/h] | 115 | 115 | 115 | 115 | 115 |
Maximum opening time [s] | <5 | <5 | <5 | <4 | <5 |
Maximum sink rate [m/s] | <5.5 | <5.5 | <5.5 | 5.35 | <5.5 |
Load (min – max) [kg] | 55-90 | 70-110 | 95-135 | 106-160 | 12-210 |
Weight [kg] | 1.4 | 1.55 | 1.85 | 1.7 | 2.8 |
More information can be found at dudek.eu
